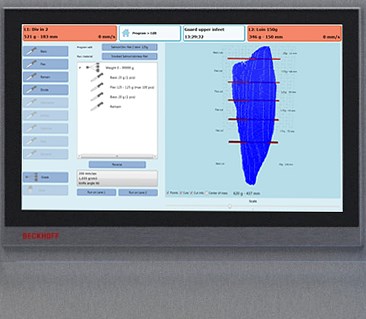

The Borncut 225S is designed to provide high precision and efficiency in the portioning process. With a capacity of up to 4,340 cuts per minute, the machine ensures fast and accurate cutting of meat and fish into fixed-weight portions. It also offers adjustable cutting angles (45˚, 60˚, 75˚, and 90˚) for flexible cutting tasks. The user-friendly HMI touchscreen makes operation simple, while the durable stainless steel design and efficient water-cooled knife motor enhance both hygiene and easy cleaning. The servo motors are protected in hermetically sealed enclosures with IP65 rating, guaranteeing reliable operation.
| HMI Operator Screen: | 15.6”, multi-touch widescreen 16/9 | ||
| Construction: | AISI type 303 and 304 stainless steel; food-grade polymer components | ||
| Footprint (225S / 225D): | L * W: 1,900 x 840 / 1,900 x 1,380 mm | ||
| Production: | Max. Cutting Speed - per belt: 2,170 cuts/min | Max. Belt Speed: 700 mm/sec | |
| Processed Products: | Max. Product Length: 750-830 mm | Max. Product Height: 80 mm | |
| Dimensions: | Belt Width: 225 mm | Infeed Belt - Max. Length: 1,100 mm | Dimensions L x W x H: 3,500 x 1,280 x 1,600 mm |
| Utilities: | Power Connection: 3*380-480V + PE, 16A, 50/60Hz | Water Connection: ½” |
